State Heritage Protection –
Warragamba Dam is located on the Warragamba River approximately 65 km southwest of Sydney.

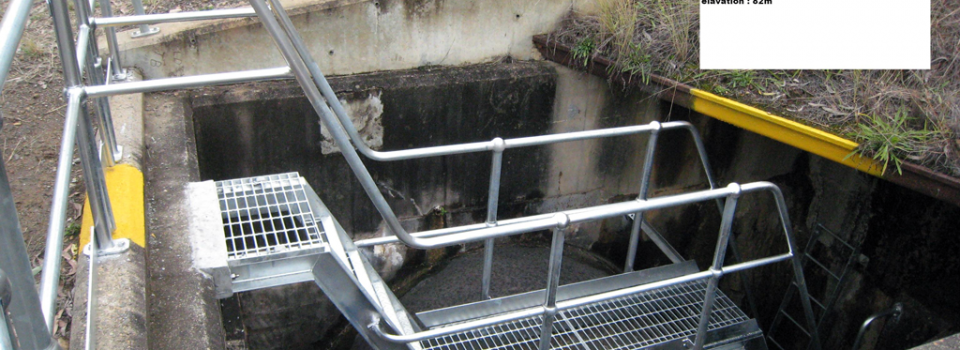

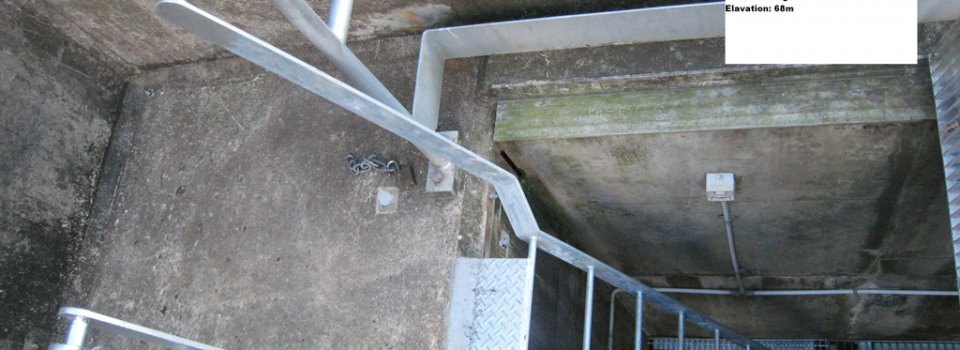

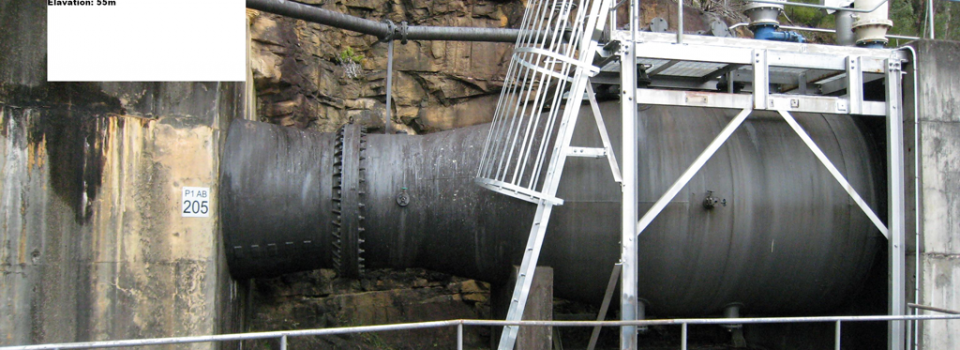

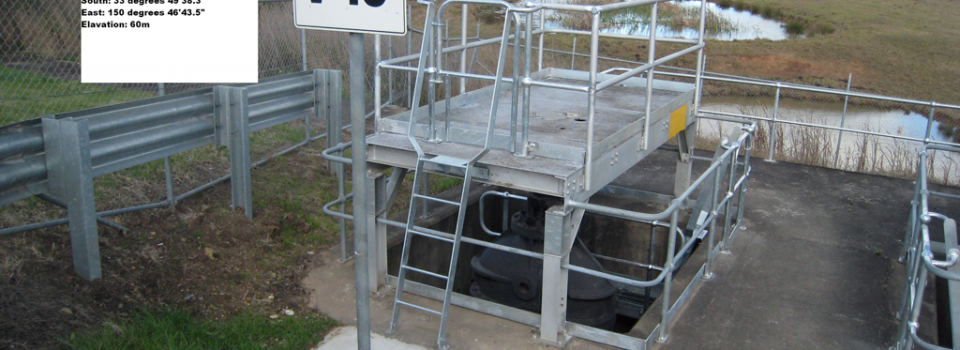

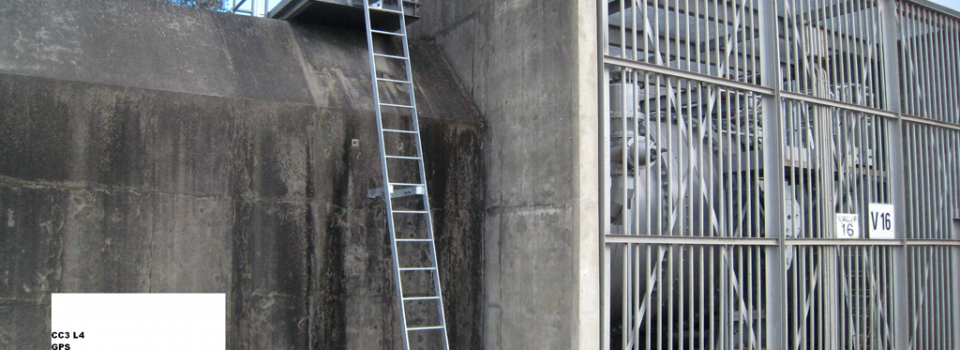

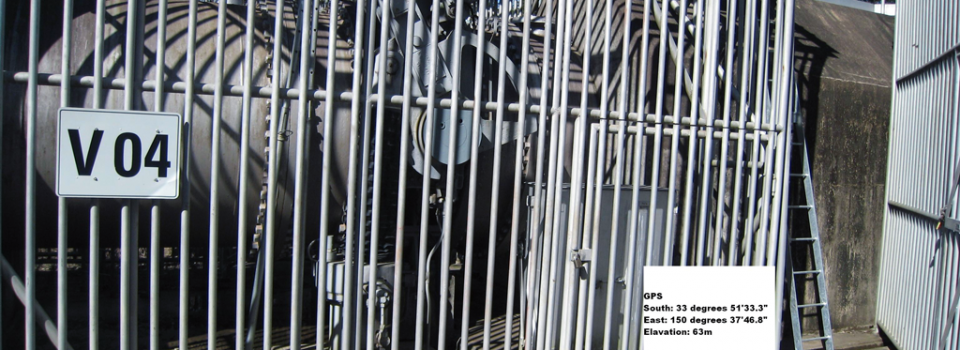

This PET project included the installation of new ladders, platforms and walkways and the modification/repair of some existing ladders, platforms and walkways at Warragamba Dam and various locations along the pipeline so that they are compliant with the current Australian Standards, relevant statutory and regularity requirements in order to provide safe access.
Design, Fabrication, Delivery to Site & Installation
PET scope of works included:
♦ Design, fabrication, delivery & installation of ladders, platforms & steel frames
♦ Design, fabricationof parts/items, delivery & modification of ladders, platforms & steel frames
♦ Materials & equipment to carry out demolition, installation & modification
♦ Removal of all redundant steelwork, waste material & rubbish
♦ Hot dip galvanise all new steelwork
♦ Touch up with Cold Gal any steelwork modified on site
To Top
Focus
♦ Design
♦ Fabrication
♦ Installation
Client
♦ Sydney Catchment Authority
Contractor
♦ Process Engineering Technologies Pty Ltd
Project Value
♦ $1.4m
